Industrial Green Dot Laser Module, 520nm, Class 3R, Less Than 4mW, with APC Driver, 7~10V Operation Voltage, D10.5x19 mm, VLM-520-01 LPA, 30 meters working distance, Laser Head, Made in Taiwan
Industrial Green Dot Laser Module, 520nm, Class 3R, Less Than 4mW, with APC Driver, 7~10V Operation Voltage, D10.5x19 mm, VLM-520-01 LPA, 30 meters working distance, Laser Head, Made in Taiwan Industrial Green Dot Laser Module, 520nm, Class 3R, Less Than 4mW, with APC Driver, 7~10V Operation Voltage, D10.5x19 mm, VLM-520-01 LPA, 30 meters working distance, Laser Head, Made in Taiwan Industrial Green Dot Laser Module, 520nm, Class 3R, Less Than 4mW, with APC Driver, 7~10V Operation Voltage, D10.5x19 mm, VLM-520-01 LPA, 30 meters working distance, Laser Head, Made in Taiwan Industrial Green Dot Laser Module, 520nm, Class 3R, Less Than 4mW, with APC Driver, 7~10V Operation Voltage, D10.5x19 mm, VLM-520-01 LPA, 30 meters working distance, Laser Head, Made in Taiwan Industrial Green Dot Laser Module, 520nm, Class 3R, Less Than 4mW, with APC Driver, 7~10V Operation Voltage, D10.5x19 mm, VLM-520-01 LPA, 30 meters working distance, Laser Head, Made in Taiwan Industrial Green Dot Laser Module, 520nm, Class 3R, Less Than 4mW, with APC Driver, 7~10V Operation Voltage, D10.5x19 mm, VLM-520-01 LPA, 30 meters working distance, Laser Head, Made in Taiwan Industrial Green Dot Laser Module, 520nm, Class 3R, Less Than 4mW, with APC Driver, 7~10V Operation Voltage, D10.5x19 mm, VLM-520-01 LPA, 30 meters working distance, Laser Head, Made in Taiwan Industrial Green Dot Laser Module, 520nm, Class 3R, Less Than 4mW, with APC Driver, 7~10V Operation Voltage, D10.5x19 mm, VLM-520-01 LPA, 30 meters working distance, Laser Head, Made in Taiwan Industrial Green Dot Laser Module, 520nm, Class 3R, Less Than 4mW, with APC Driver, 7~10V Operation Voltage, D10.5x19 mm, VLM-520-01 LPA, 30 meters working distance, Laser Head, Made in Taiwan Industrial Green Dot Laser Module, 520nm, Class 3R, Less Than 4mW, with APC Driver, 7~10V Operation Voltage, D10.5x19 mm, VLM-520-01 LPA, 30 meters working distance, Laser Head, Made in Taiwan Industrial Green Dot Laser Module, 520nm, Class 3R, Less Than 4mW, with APC Driver, 7~10V Operation Voltage, D10.5x19 mm, VLM-520-01 LPA, 30 meters working distance, Laser Head, Made in Taiwan

Industrial Green Dot Laser Module, 520nm, Class 3R, Less Than 4mW, with APC Driver, 7~10V Operation Voltage, D10.5x19 mm, VLM-520-01 LPA, 30 meters working distance, Laser Head, Made in Taiwan

flash sale iconLimited Time Sale
Until the end
20
27
52

US$21.59 cheaper than the new price!!

Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
Used  US$14.40
quantity

Product details

Management number 210186352 Release Date 2026/04/02 List Price US$14.40 Model Number 210186352
Category
  1. Tools & Home Improvement
  2. Measuring & Layout Tools
  3. Laser Levels & Accessories
  4. Line Lasers

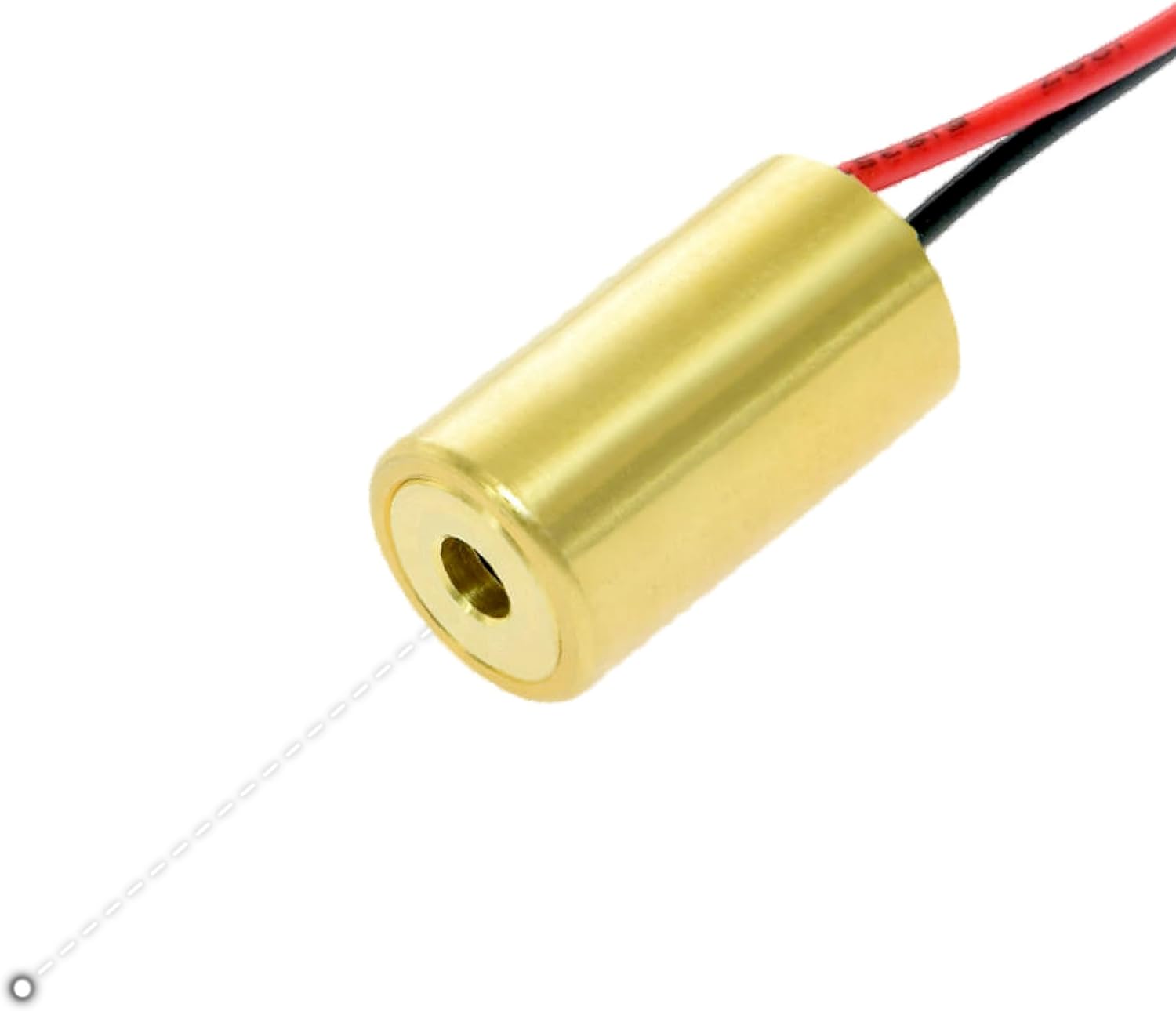

  • Integrated Industrial-Grade Design: The VLM-520-01 LPA green dot laser module integrates a direct green laser diode, high-quality aspherical plastic collimating lens, and an APC (Auto-Power-Control) driver circuit inside a durable solid brass housing. It delivers Class 3R output (less than 4mW, Class IIIa) with stable performance for industrial applications.
  • Enhanced Visibility with 520nm Green Light: This module emits a bright 520nm green beam that is 5~10 times more visible to the human eye compared to red lasers of the same power. The high-visibility output ensures clear dot projection in indoor environments, making it ideal for positioning and alignment assembly tasks.

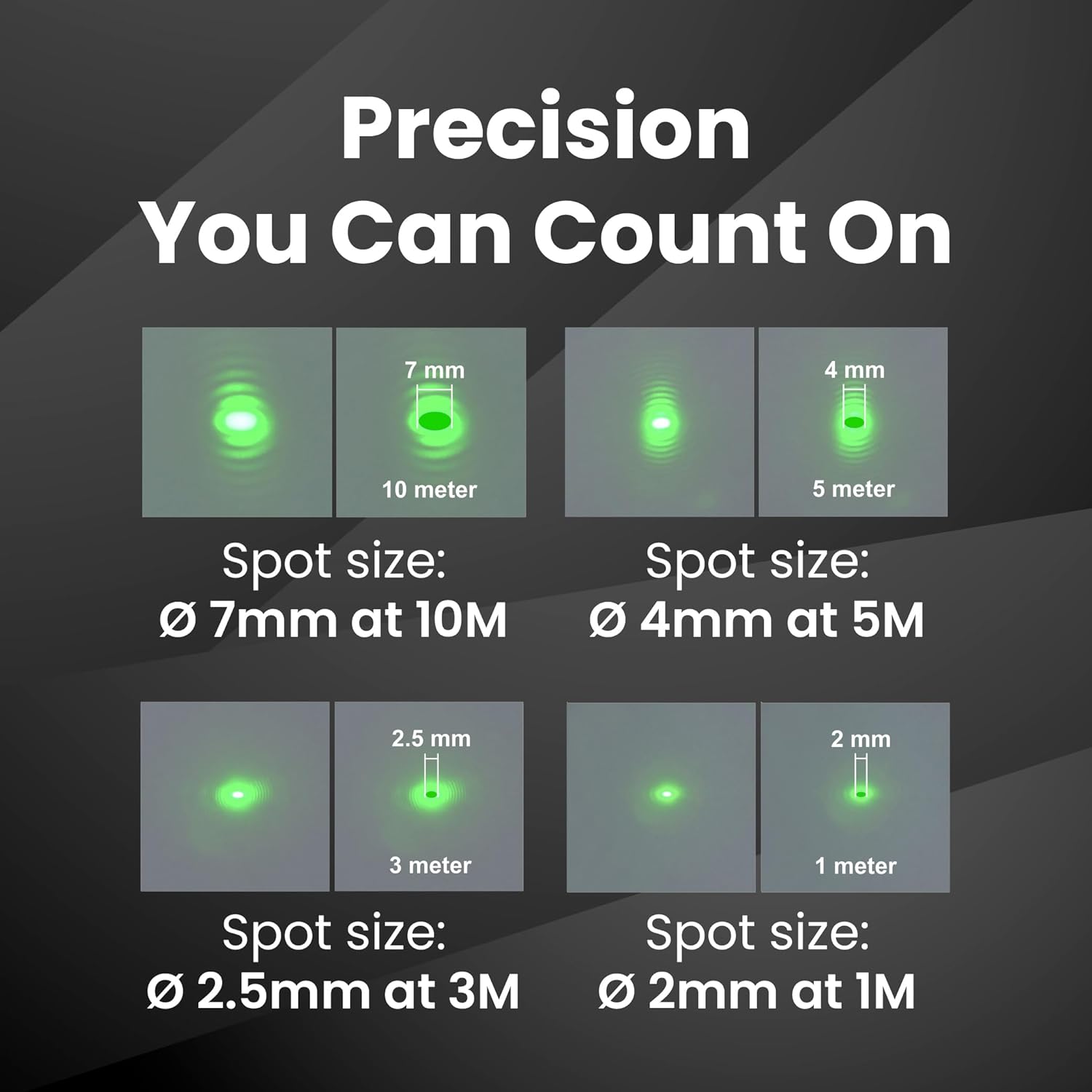

  • Precision Beam & 30 Meters Working Distance: Engineered for accuracy, the VLM-520-01 LPA sizes D10.5 x L19 mm (D0.413 x L0.748 inches) featuring a 0.5 mRad full-angle beam divergence and maintains a spot size of less than 4.5mm at 3 meters, making it suitable for short-to-mid-range industrial targeting. Its 7~10 VDC operating range ensures system integration with power sources.
  • Industrial Green dot Laser: this module provides reliable performance for alignment, positioning, measuring, and pointing applications. It offers a cost-efficient option for medical devices, automation equipment, automotive assembly tools, and OEM integration.
  • Durable Brass Housing with Heat & Shock Resistance: Built with a patented solid brass structure, this module provides strong shock resistance, stable thermal dissipation, and extended reliability. Designed for indoor/outdoor industrial environments, it maintains consistent output across a wide operating temperature range, ensuring dependable long-term use. Mean Time to Failure (MTTF): 10,000 hours at 77°F (25°C).
UPC 705702401499
Color Green
Brand Name Quarton
Style Name VLM-520-01 LPA - Green laser dot, Class 3R
Unit Count 1.0 Count
Item Weight 9 Grams
Manufacturer Quarton inc.
Material Type Bronze, Plastic
Operation Mode Automatic
Included Components laser module
Item Dimensions L x W 0.72"L x 0.41"W

Industrial Green Dot Laser Module, 520nm, Class 3R, Less Than 4mW, with APC Driver, 7~10V Operation Voltage, D10.5x19 mm, VLM-520-01 LPA, 30 meters working distance, Laser Head, Made in Taiwan
