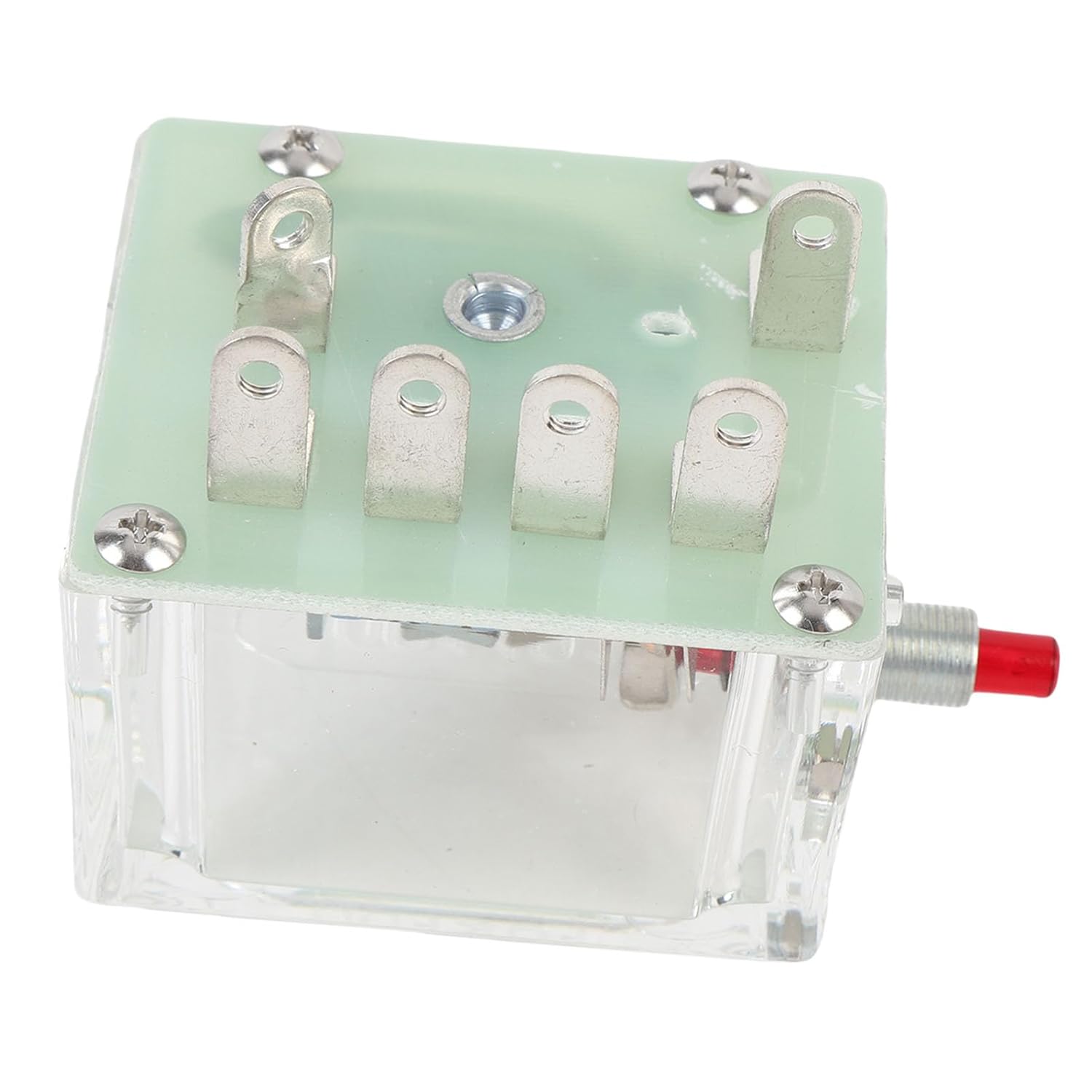

CUIFATI 518Aph 12, Closed Loop Wiring 12V Magnetic Switch for Replacing The Marine Engine for Bandit Chipper

1. HIGH PERFORMANCE: Magnetic switch allows for Swichgage and/or N.C. touch points to be wired Closed Loop (in series). Any touch point open or Swichgage touch point close in the circuit shunt trips the switch. Use for distributor ignition or derv engines. 2. NCH AND NOH POSITION: Features a manual indicating reset type, the control circuit output touch point is NCH and NOH. In the latched position, the NCH touch point has a hot output; in the tripped position, the NOH touch has a hot output, The latch type is energize to latch. Touch point is rated for 10A. A 14 amp fuse is included. 3. EFFICIENT CLOSED LOOP WIRING: The switch allows for Closed Loop circuitry, with effective closed loop wiring to promote stable energy flow within the circuit. This design enhances overall efficiency and contributes to safe engine operations by minimizing the risk of malfunction. 4. DEPENDABLE SHUNT TRIPPING: Marine engine magnetic switch offers reliable shunt tripping within the circuit, ensuring effectiveness whether the touch points are open or closed. Configurations are available for touch point make or break to cause shutdown. Some have both make and break touch points. 5. WIDE APPLICATIONS: Designed for control systems, this magnetic switch relay is versatile and suitable for various applications, including automotive, marine engines, and heavy duty derv generator sets. Specification: Item Type: 12V Magnetic SwitchMaterial: ABS + metal alloy Part Number: 518APH 12, 25700147 Touch Point Rated Current: 10A Operating Temperature Range: -40 to 80℃ (-40 to 176℉) Application: Replacement for Bandit Chipper Marine Engine Heavy Duty Derv Generator Engines and Distributor Package List: 1 x 12V Magnetic Switch 1 x Pack of Accessory (11 Pieces) Note: Please double check the part number of your item, matching information is for reference only.

• DEPENDABLE SHUNT TRIPPING: Marine engine magnetic switch offers reliable shunt tripping within the circuit, ensuring effectiveness whether the touch points are open or closed. Configurations are available for touch point make or break to cause shutdown. Some have both make and break touch points.
• HIGH PERFORMANCE: Magnetic switch allows for Swichgage and/or N.C. touch points to be wired Closed Loop (in series). Any touch point open or Swichgage touch point close in the circuit shunt trips the switch. Use for distributor ignition or derv engines.
• WIDE APPLICATIONS: Designed for control systems, this magnetic switch relay is versatile and suitable for various applications, including automotive, marine engines, and heavy duty derv generator sets.
• NCH AND NOH POSITION: Features a manual indicating reset type, the control circuit output touch point is NCH and NOH. In the latched position, the NCH touch point has a hot output; in the tripped position, the NOH touch has a hot output, The latch type is energize to latch. Touch point is rated for 10A. A 14 amp fuse is included.
• EFFICIENT CLOSED LOOP WIRING: The switch allows for Closed Loop circuitry, with effective closed loop wiring to promote stable energy flow within the circuit. This design enhances overall efficiency and contributes to safe engine operations by minimizing the risk of malfunction.
